단위 제품부터 통합 솔루션에 이르기까지 다양한 제품 제공
IDQ는 가이거 모드로 애벌랜치 포토 다이오드(APD)를 사용하는 가시 광선 및 적외선 단일 광자 검출기 분야의 리더로써 최고의 제품을 제공합니다. 전자공학 및 FPGA의 발전을 기반으로 한 신기술의 이해와 습득을 통해 품질, 신뢰성 및 사양 등 모든 방면에서 직접 제조 역량을 발휘합니다.
anchor anchorNew Products
ID 3000 Series – Picosecond Lasers
- On-demand laser pulses, continuously tuneable up to 40 MHz
- Ultrafast laser pulses (typically below 30 ps, at least < 50 ps)
- Ultra-low timing jitter < 4 ps rms
- Operating in a range of wavelengths, from UV to the telecom C-band
Product DetailsID Qube NIR Free-Running
- High-efficiency single-photon detection (up to 35%)
- Optimised for free-running operation
- Precise timing (<200 ps jitter, typ. <150 ps)
- Ultra-low noise (<800 Hz dark counts)
Product DetailsID Qube NIR Gated
- High-efficiency single-photon detection (up to 35%)
- Fast gating (up to 100 MHz and free-running)
- Precise timing (<200 ps jitter, typ. <150 ps)
- Ultra-low noise (<800 Hz dark counts)
Product Details anchorSuperconducting Nanowire Single-Photon Detectors
ID281 Superconducting Nanowire
- High system detection efficiency: up to 90%
- Low time jitter
- Short recovery time and latch-free operation
- Up to 16 built-in detectors
Product Details anchorInGaAs/InP single-photon avalanche diodes (III-V SPADs)
ID Qube NIR Gated
- High-efficiency single-photon detection (up to 35%)
- Fast gating (up to 100 MHz and free-running)
- Precise timing (<200 ps jitter, typ. <150 ps)
- Ultra-low noise (<800 Hz dark counts)
Product DetailsID Qube NIR Free-Running
- High-efficiency single-photon detection (up to 35%)
- Optimised for free-running operation
- Precise timing (<200 ps jitter, typ. <150 ps)
- Ultra-low noise (<800 Hz dark counts)
Product DetailsID230 Infrared Single-Photon Detector
- Free-running
- 25% quantum efficiency
- Low dark count rate: 50 Hz
- 150 ps timing resolution
Product Details anchorSilicon single-photon avalanche diodes (Si SPADs)

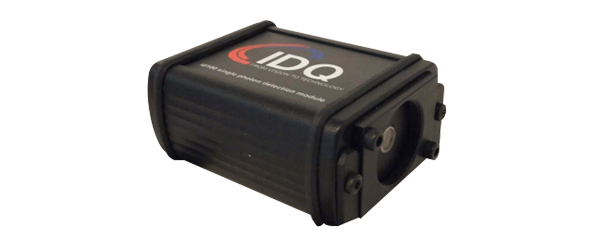

ID100 Visible Single-Photon Detector
- Free-running
- 35% quantum efficiency
- Low Dark Count Rate <7 Hz
- 40 ps timing resolution

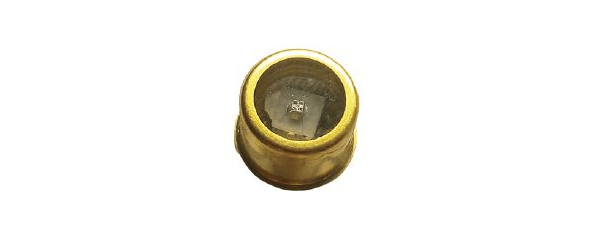

Product DetailsID101 OEM Visible Photon Counter
- OEM free-running
- 35% quantum efficiency
- Compact and reliable
- Cost efficient
Product DetailsID120 Visible Single-Photon Detector
- Free-running
- 80% quantum efficiency
- 500 μm active area
- Adjustable settings
Product Details anchorTiming Devices
ID900 Time Controller Series
- Time-tagging and histogramming
- Delay generation with multi-hit ability
- Pattern generation
- 1 GHz counters
Product DetailsID1000 Time Controller Series
- All-in-one time-tagger & pulse generator
- Multi-device synchronisation for over 64 input channels
- Precise timing: 3 ps resolution
- Real-time four-fold coincidence filtering
Product Details anchorLight Sources
ID 3000 Series – Picosecond Lasers
- On-demand laser pulses, continuously tuneable up to 40 MHz
- Ultrafast laser pulses (typically below 30 ps, at least < 50 ps)
- Ultra-low timing jitter < 4 ps rms
- Operating in a range of wavelengths, from UV to the telecom C-band
Product Details anchorQKD in the Lab
Clavis300 Quantum Cryptography Platform
- Embedded LEA encryptor
- Long distance QKD and key relays
- Modular solution to test multiple configurations
- User-friendly graphical interface for technology evaluation
Product DetailsCerberis XGR QKD Platform
- R&D에 적용 가능한 오픈 QKD platform
- 키 분배용 임베디드 KMS
- 외장 인크립터 인터페이스
- 기술 평가 및 테스트를 위한 사용자 인터페이스
Product Details
